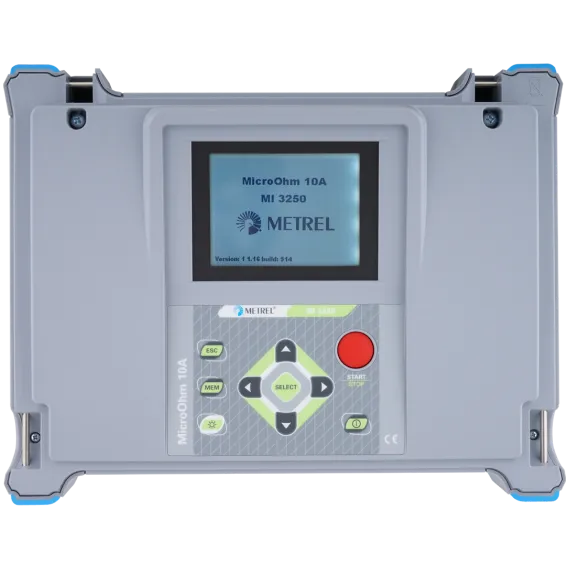

MI 3250 MicroOhm 10A
Low Voltage (LV) Switchgear System
Information
The MI 3250 MicroOhm 10 A is a portable low‑resistance ohmmeter designed for measuring low resistances in breakers and switches, busbars, cable joints, and small to medium‑sized transformer and motor windings in industrial applications, using test currents up to 10 A.
The instrument uses the 4‑lead Kelvin measurement method, and the automatic bidirectional test procedure ensures very high measurement accuracy (0.25%). It can be powered either from the mains or via internal rechargeable batteries.
Test results can be stored directly on the instrument and later transferred to a PC using the HVLink PRO software (included in the standard set), where the data can be analysed or printed.
