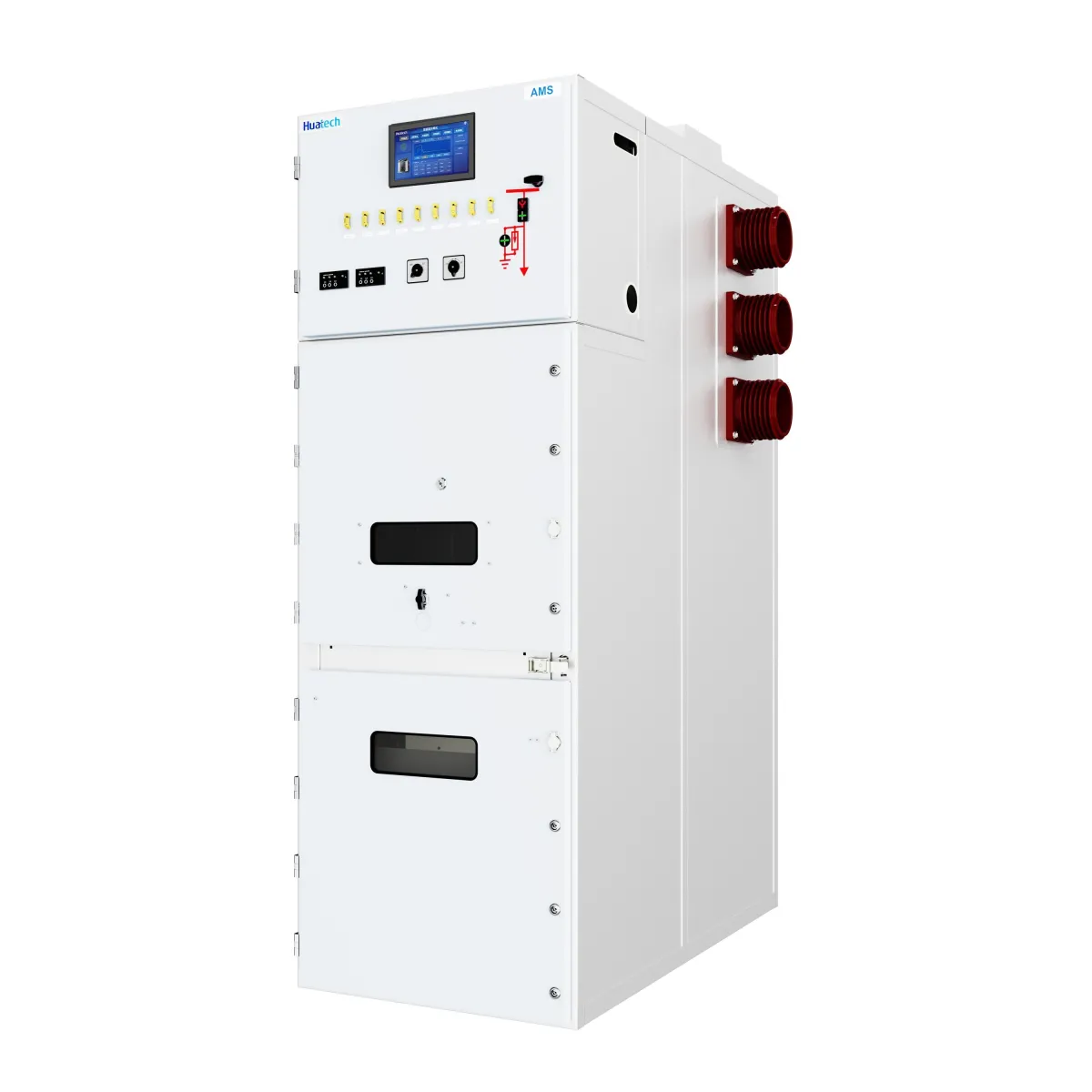

AMS Air-insulated Switchgear
Medium Voltage (MV) Switchgear System
Information
| Main parameters
· Rated voltage: 12kV/17.5kV/24kV/40.5kV
· Rated current:...5000A/...4000A/...4000A/...4000A
· Rated short-circuit breaking current: ...50kA/...40kA/...40kA/...40kA
· Rated peak withstand current: ...125kA
· IAC AFLR: 20kA/1s~50kA/1s
· LSC2B-PM
| Safety
· Complete test verification.
· Reliable "five-proof" interlocking system.
· Complete mechanical interlocking system.
· Independent pressure release channel.
· Metal armored cosed design, the whole cabinet protection level IP4X.
· Independent high-voltage and low-voltage compartments.
· Interlock mechanism ensure the closed operation.
| Reliable
· Scientific double bending and riveting process of aluminum-zinc-coated plate.
· Advanced production, processing and testing equipment,
· Strict quality management system.
· Reliable VEP/FEP/VEC/VFS main switches.
· ESW type fast earth switch with short-circuit shutdown capability.
· Class 1E nuclear certified products.
· Internal arc protection up to 50kA/1s
| Advantages
· Full range of sizes, 550/650/800/1000/1200/1400/1680mm.· Reliable wall or back to back mounting for front - of - cabinet operation.
· D-type main busbar design, optimize electric field distribution.
· Metal compartment modular design for easy assembly, mainten-ance and expansion.
| Innovations
· Full range of circuit breaker chassis truck/propulsion mechanism and ground switch to realize electric operation.
· Optional dual power mechanical interlocking, safety is more secure
· Compact design, saving installation space
· Intelligent components can be configured to achieve "self-awareness,autonomous monitoring, automatic warning".
