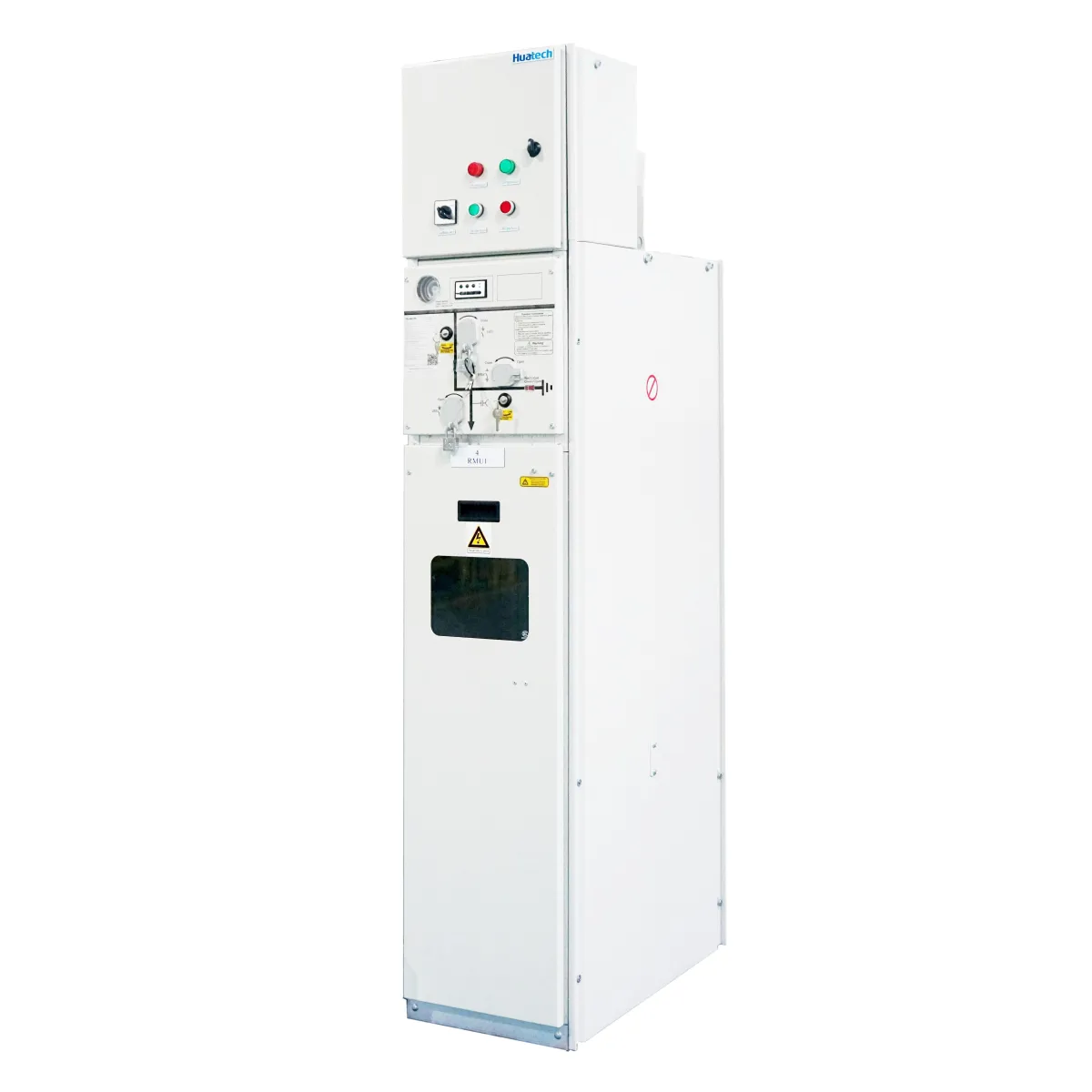

Enerswitt SF6 Gas-insulated Ring Main Unit
Medium Voltage (MV) Switchgear System
Information
| Main parameters
· Rated voltage: 12kV
· Rated current: ...1250A
· Rated short-time withstand current: ...25kA/4s
· Mechanical endurance: 10000/5000
| Safety
· High-strength gas tank by robot welding
· Mechanical interlock
· Lightning impulse voltage 95/110kV
· Partial discharge s20pc
· Salt spray, water immersion, dew condensation, high and lowtemperature test
| Reliable
· Patented rotary compressed air load switch.
· Circuit breaker cabinet adopts vacuum arc extinction.
· Annual leakage rate s0.01%.
· Seismic intensity 9.
| Green
· More than 90% of metal materials can be recycled.
· 360/500mm cabinet width, reduce floor space.
· Air tank 30 years maintenance-free.
| Intelligent
· Flexible expansion, diverse combinations.
· Standard modular design.
· Expandable condition monitoring.
· The operating mechanism can be upgraded from manual to motor.
