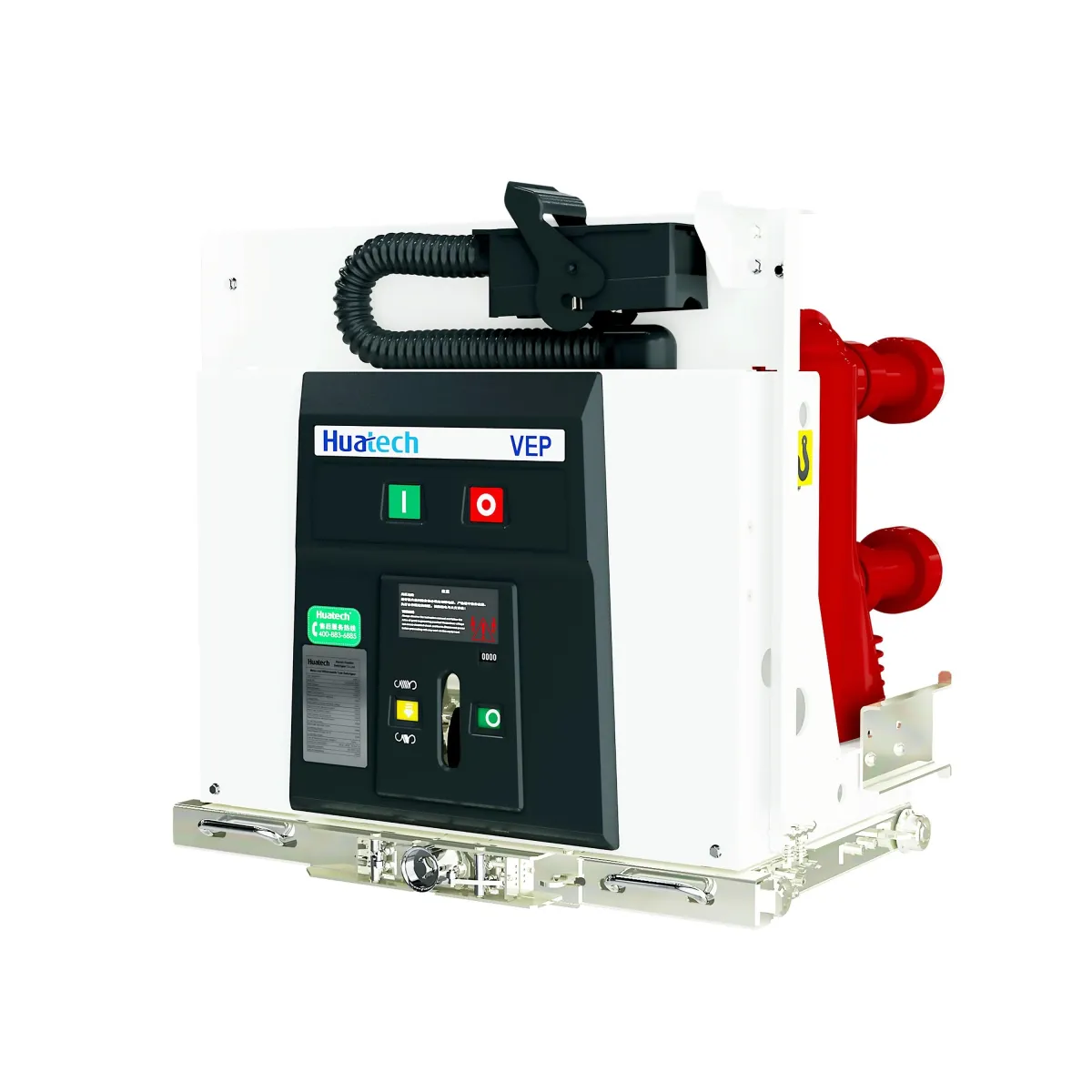

VEP Embedded Pole Vacuum Circuit Breaker
Medium Voltage (MV) Switchgear System
Information
| Main parameters
· Rated voltage: 12kV /17.5kV /24kV /40.5kV
· Rated current:...5000A/...4000A/...4000A/...4000A
· Rated short-circuit breaking current:...50kA/...40kA/...40kA/...40kA
· Mechanical endurance: 30,000
· Class:M2-C2-E2
· Altitude:4500m
| Safety
· Complete test validation.
· Perfect interlock system.
· Rigorous electric field simulation analysis.
· Unique double APG sealing process.
· Extremely strong ability to withstand harsh environment.
· Pole partial discharge ≤5pC.
| Reliable
· Efficient and intelligent assembly line.
· Advanced processing and testing equipment.
· Strict quality management system.
· Professional and timely after-sales service.
· Reliable assembly of various cabinet sizes.
I Advantages
· Modularized operating mechanism, improving assembly efficiency.
· Standardized modular mechanism, reducing spare part costs.
· Quick replacement of modular mechanism, shortening maintenance time.
· Embedded pole with fully maintenance-free design, achieving cost reduction and efficiency improvement.
· High-performance decoupling buffer, extending mechanical service life.
| Innovations
· Compact high-interrupting-capacity vacuum interrupters.
· Motor-driven chassis truck, enabling substation automation.
· Intelligent circuit breaker solution for fault analysis and diagnosis.
· Advanced sensing layer components for real-time detection of circuit breaker status.
· Support for cloud-based remote intelligent diagnosis, operational life analysis and other functions.
