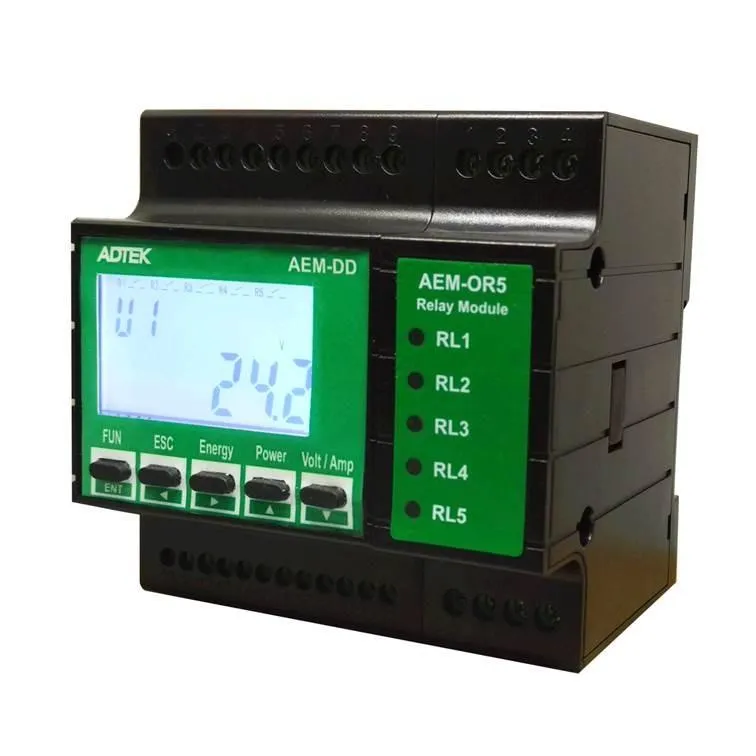

AEM-DD Multi-Circuit DC Power Meter (DIN rail)

AEM-DD provide high accuracy DC power measurement, display and remote communication of five loops (V, A, P, Kwh). Multi-circuit design and relay output modular expansion design decrease the overall cost and make the functionality more flexible. All monitored data is available via a RS485 serial , for the needs in energy management, alarming, and remote controlling. Embedded flash memory for Data-Logging can avoid any data missing once the communication is interrupted. Moreover, its ultra compact size DIN-rail mounting makes itself mountable in virtually any panel, enclosure or indoor Cabinet. Features ■ Metering parameters of Voltage, Current, Active Power, Energy (Watt-Hr) of DC power system ■ 2-line display both with 6 digits, able to view the name and value of the parameter at the same time ■ Modular Expansion Design, able to correspond to different parameters individually ■ Relay output with Start Delay, Hysteresis, Energized, and de-energized delay functions ■ With RS485 serial as standard for remote controlling relay output ■ Standard DIN-Rail mounting ■ CE Approved ■ Embedded 1MB flash memory for Data-Logging ■ With 20 words variables in Modbus address for acquiring the demand measurement at cost Applications ■ DC Power supply system ■ Solar Power ■ Battery Bank
