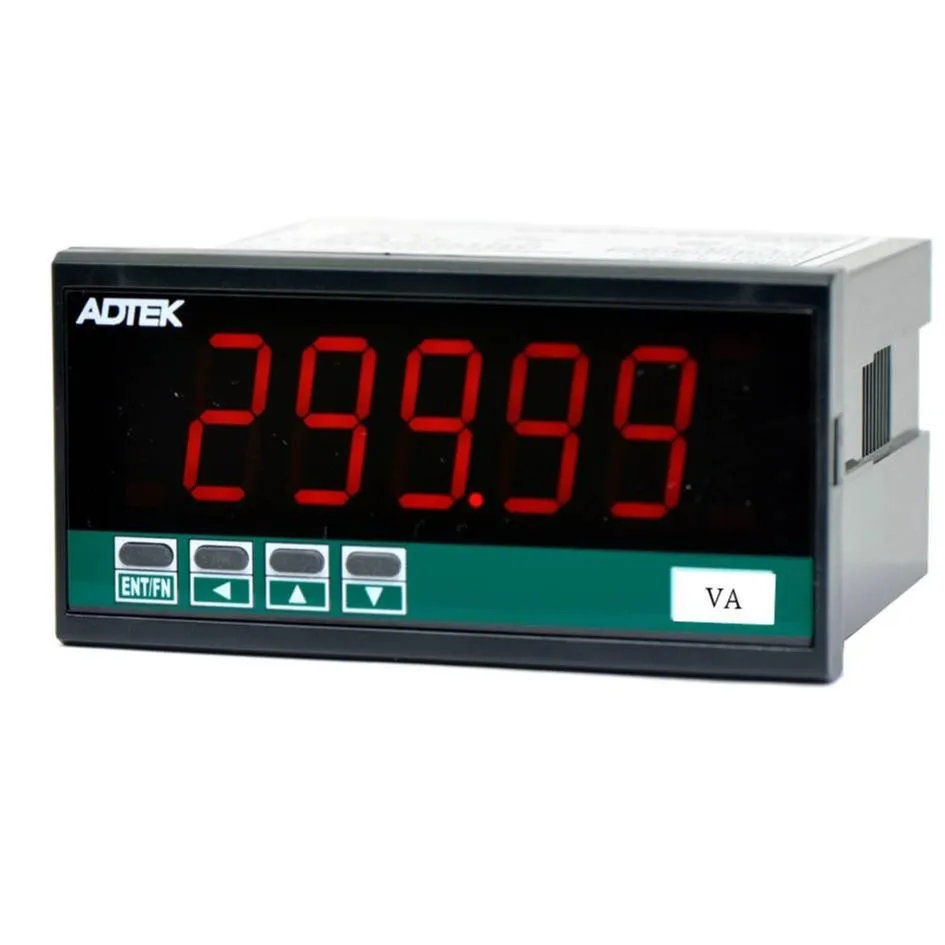

CS2-VA 4 2/3 Digits Voltage/Current Meter

CS2-VA Voltage/Current Indicator is designed with high accuracy measurement, display and communication. The communication range is 0~600V or 0~10A for DC/AC/TRMS. This meter goes with 4 Relay outputs, 3 External Control Inputs, 1 Analog output and 1 RS-485 (Modbus RTU Mode) interface providing versatile functions such as control, alarm, transmission and communication. They can be widely applied in machinery, equipment inspection, production control, data collection, central monitoring, and overload protection for distribution board. Features ■ Measuring Voltage 0~600V or Current 0~10A for DC / AC / TRMS ■ 4 relay outputs can be individually programmed to be Hi /Lo /Hi Hold /Lo Hold /Go /DO providing the function such as energized with Start Delay/ Hysteresis / Delay On / Delay Off functions, or Remote Control. ■ Analog output and RS-485 communication port are included. ■ 3 external control inputs can be individually programmed to be Relative PV (Tare) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Latching Relay. ■ High-voltage Input module is optional for metering high-voltage signal. ■ CE & RoHS Certification
